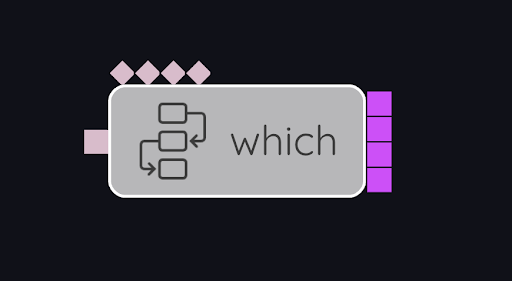

which
| Name | Type | Description | Optional |
|---|---|---|---|
case0 |
?0 |
case selector for out0 |
yes |
case1 |
?0 |
case selector for out1 |
yes |
… |
|||
case N-1 |
?0 |
case selector for out N-1 |
yes |
| Name | Type | Description | Optional |
|---|---|---|---|
selector |
?0 |
selector value |
no |
| Name | Type | Description | Optional |
|---|---|---|---|
out0 |
bool |
output selected when case0 is matched |
yes |
out1 |
bool |
output selected when case1 is matched |
yes |
… |
|||
out N-1 |
bool |
output selected when case N-1 is matched |
yes |
which reads a selector value from its sole input port, sends a true value from the selected output port, and sends false to all the other outputs.
